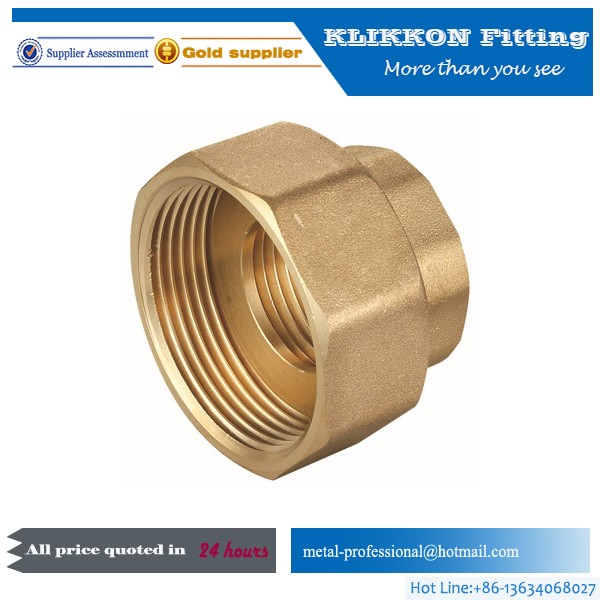

Our factory are good at manufacturing bronze pipe fittings, air fittings, hydraulic fittings, tube fittings sample or drawing will be welcome.

We always try to reduce the cost to increase value for customer.

Our advantage is:
Flexible MOQ, Competitive price, Stable quality, Strong technical support.
Welcome to send drawing to us, if you don't have drawing. That will be no problem, we will drawing for you for free.

Klikkon Industrial, your choice when you need work done well!

• Typical Application Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
• Pressure Operating pressure up to 1200 PSI.
• Vibration Fair resistance.
• Temperature Range -650 F to +2500 F (-530 C to +1210 C).
• Material CA360 Brass for Barstock fittings. CA377 Brass for forged fittings.
• Used With Brass, bronze, copper, steel, aluminum and iron pipe.
• Tolerance +/-.02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
• Conformance Meets specifications and standards of ASA, ASME and SAE.
• "L" at the end of a Part# means Light Pattern - these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
• Assembly Instructions 1-Tighten approximately 2-1/2 turns past hand tight. 2- Fittings with Everseal tighten two turns past hand tight. Brittle materials require special cautions.
• for larger sizes see bronze fittings on page 208

• see page 271 for plastic pipe fittings.
